Rubber Liner Vertical Centrifugal Slurry Pumps

Slurry Pumps

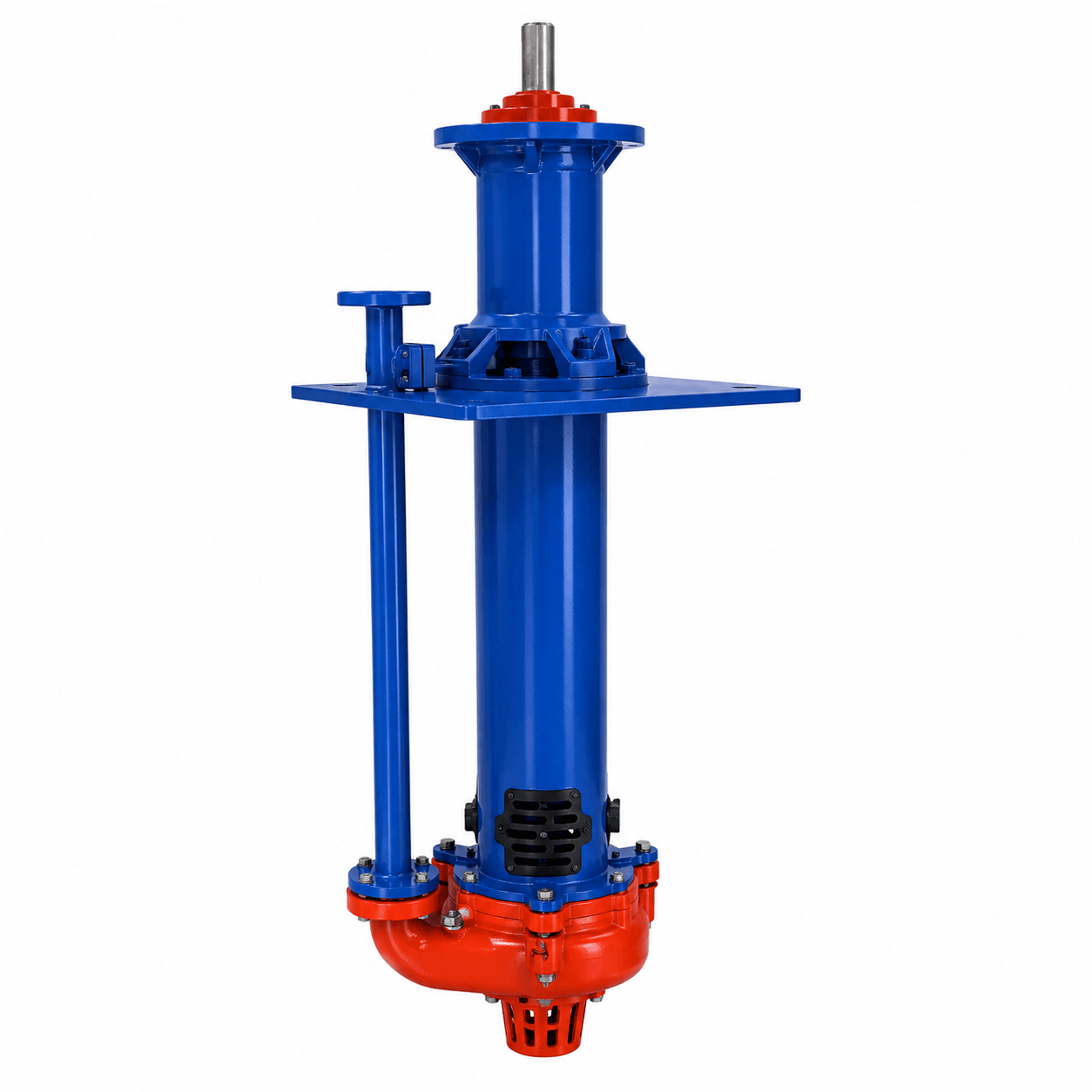

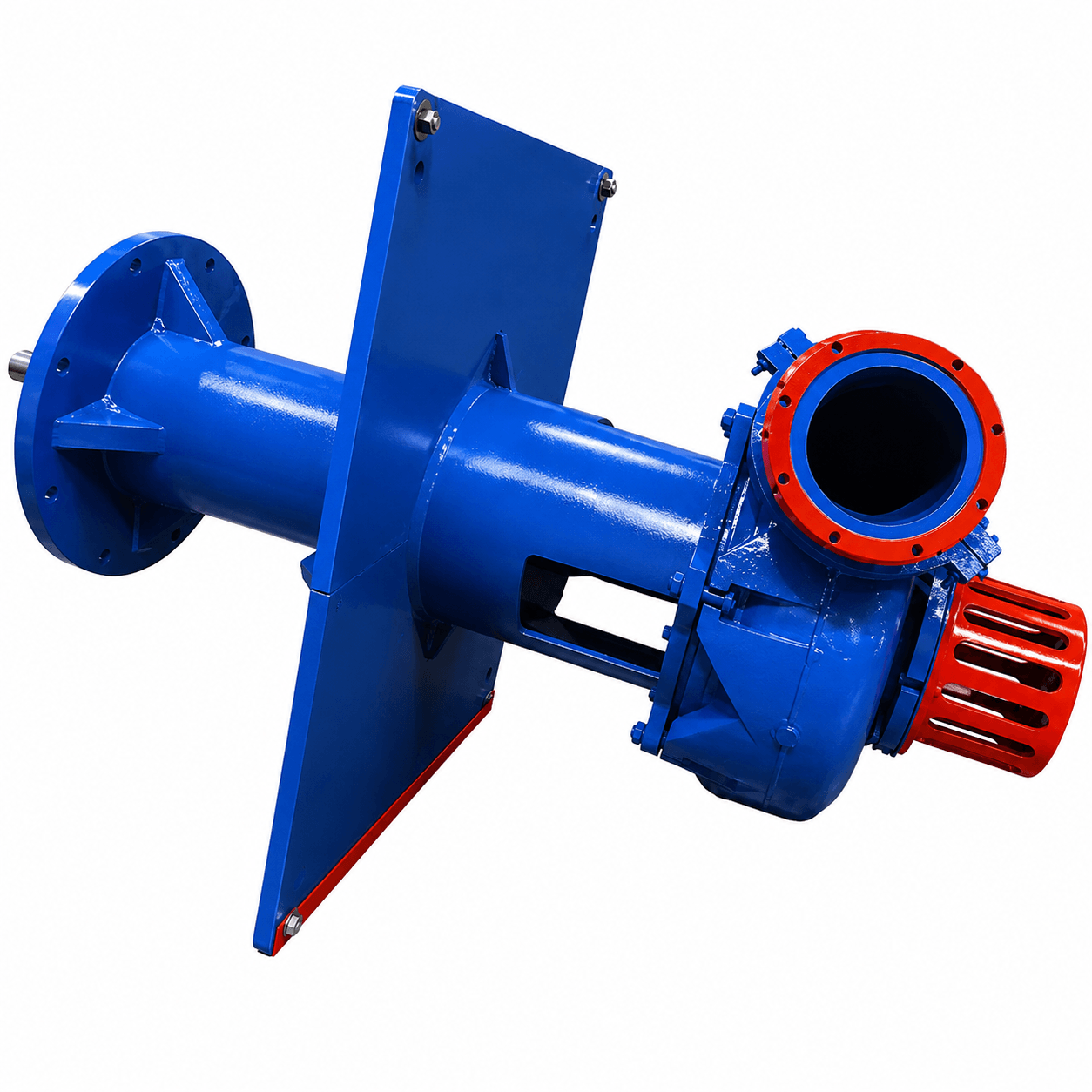

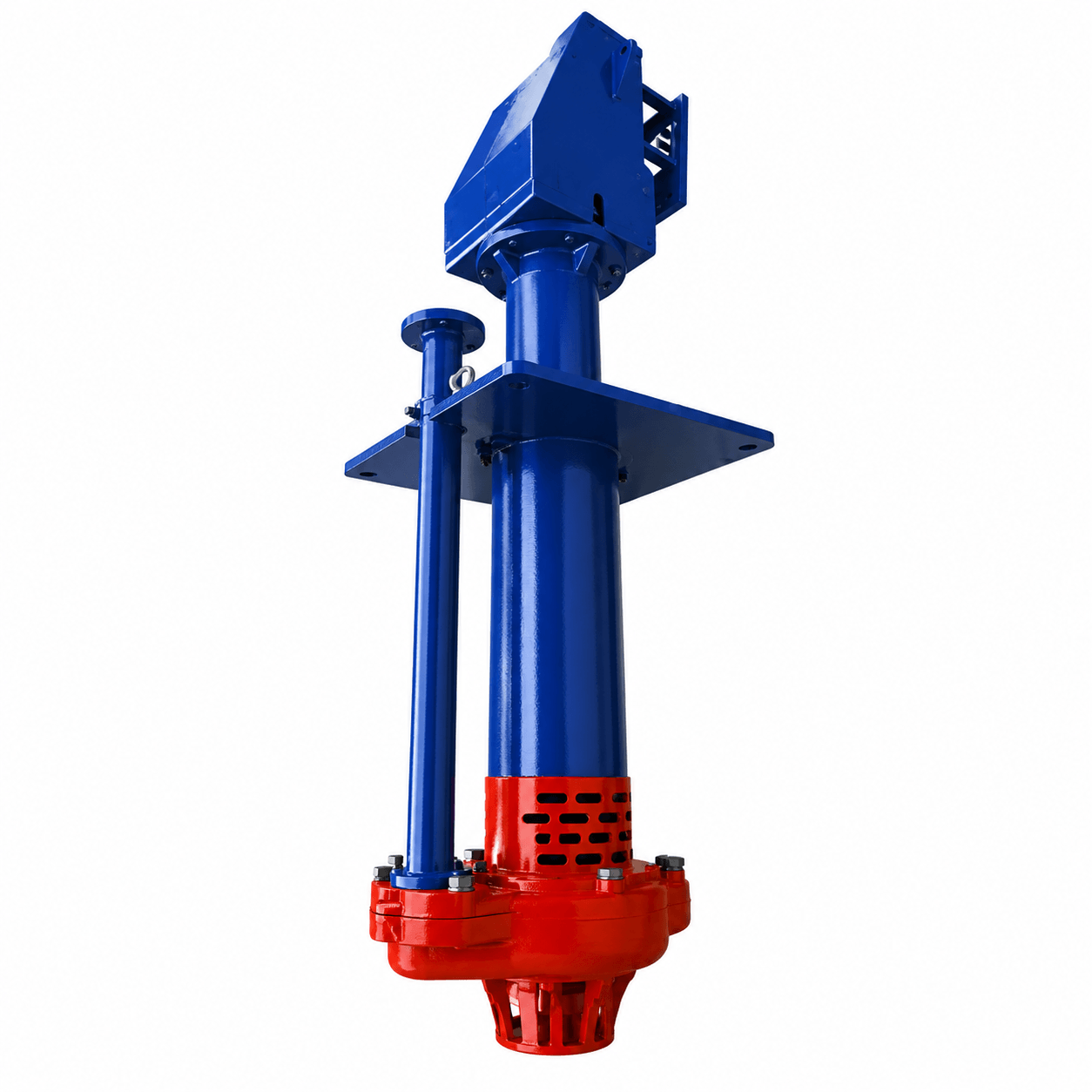

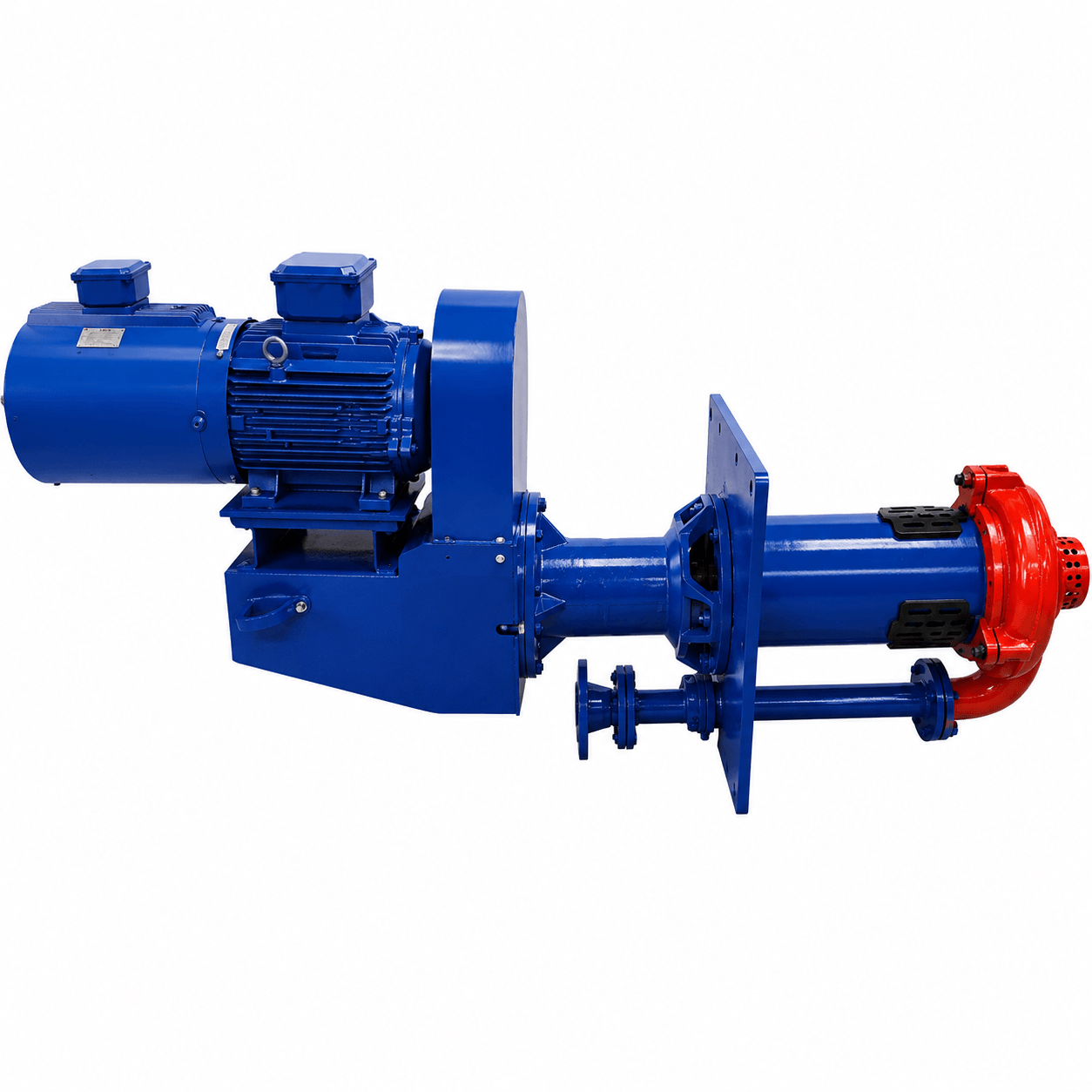

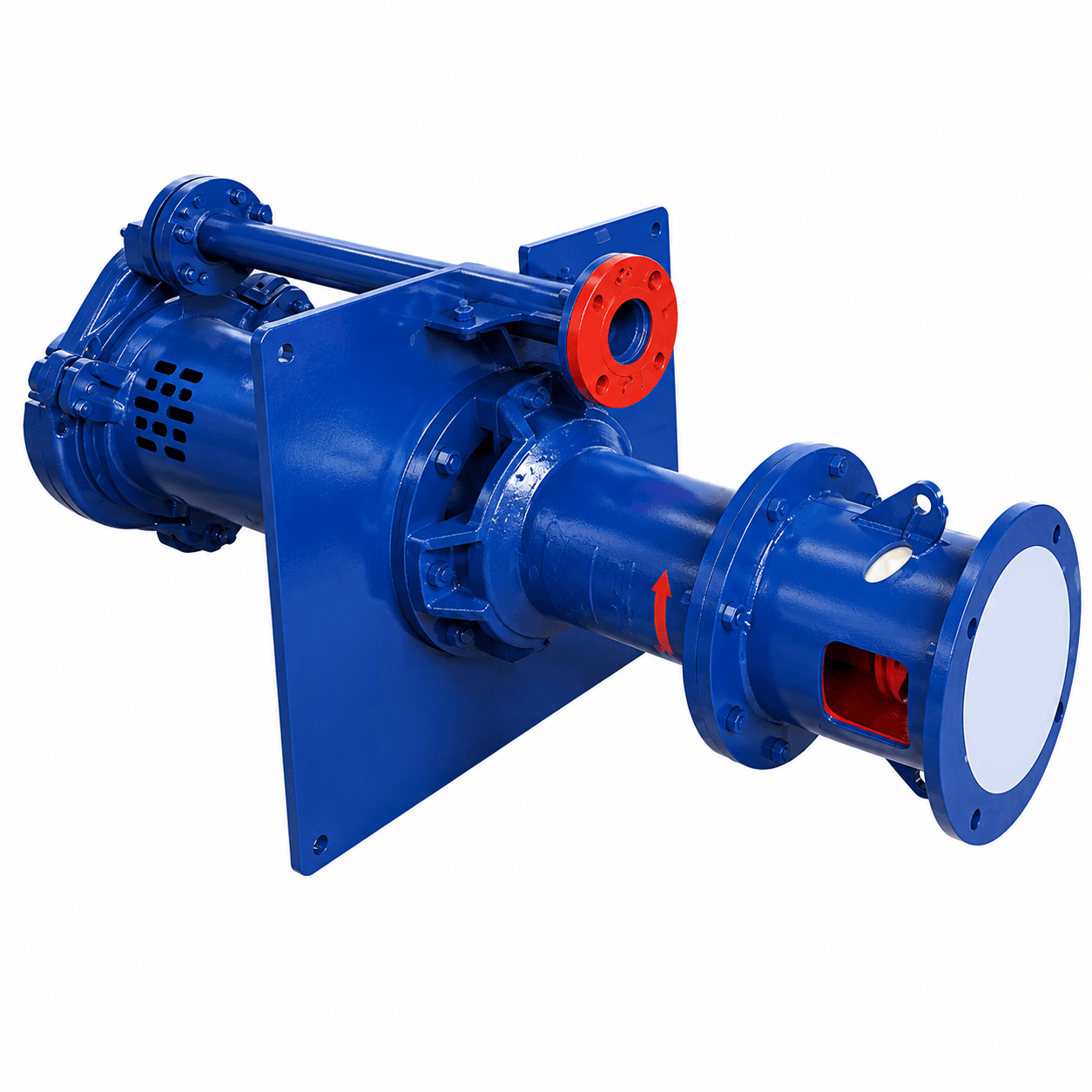

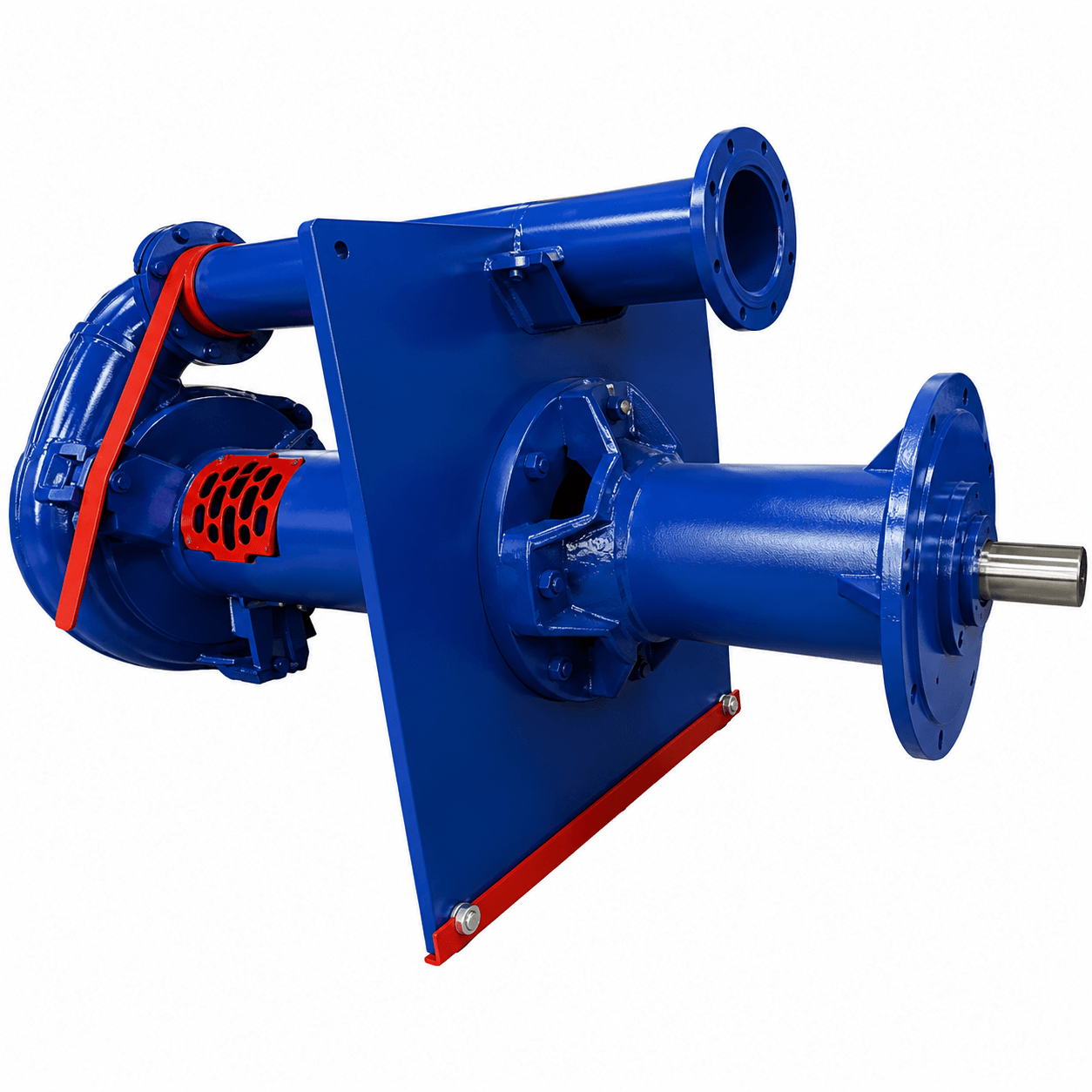

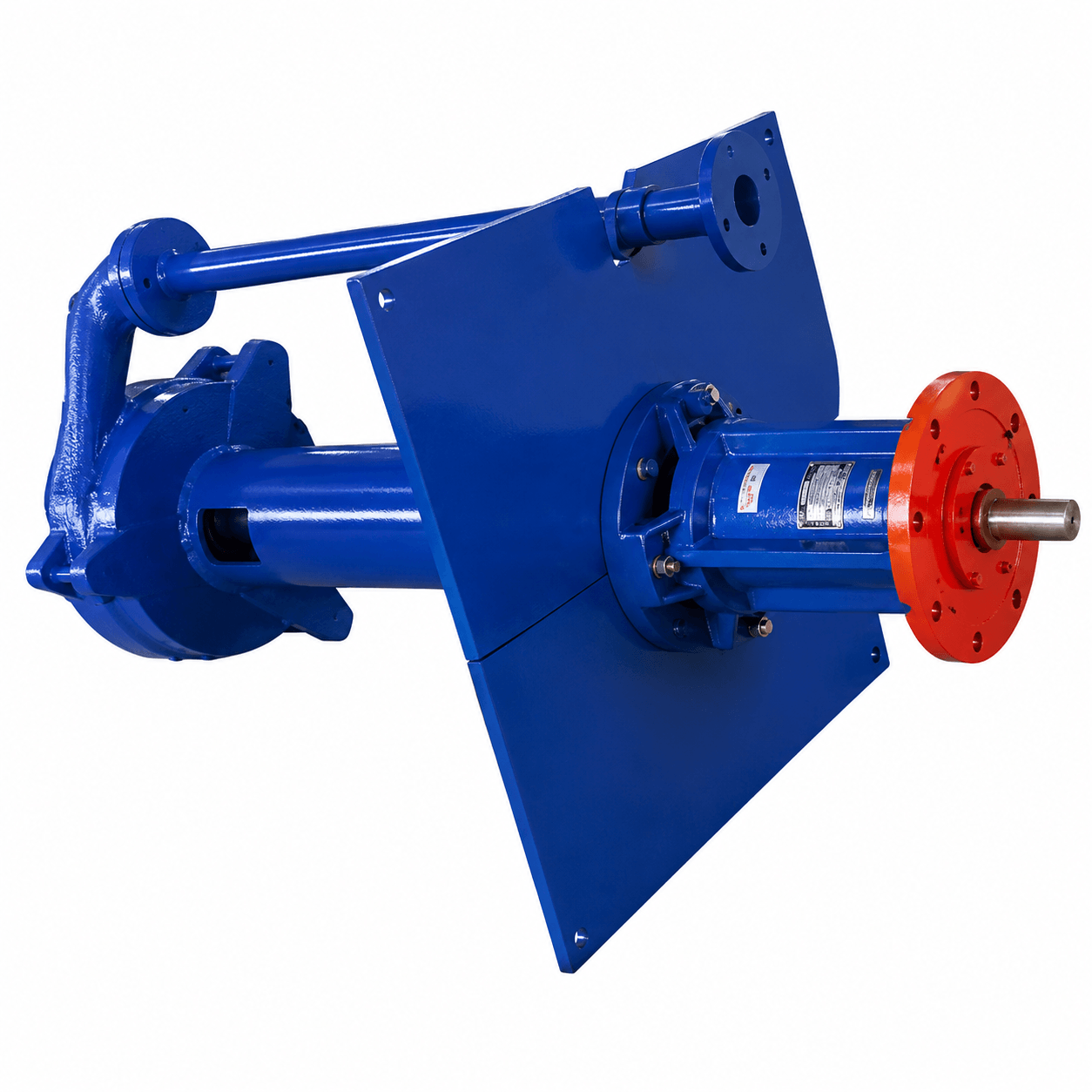

Vertical Sump Pump

SMI Pumps supplies a range of high-performance Vertical Sump Pumps designed for handling abrasive, high-density slurries and liquids containing large solid particles. Engineered for demanding industrial applications, these pumps are ideal for continuous operation where the pump is submerged directly into a sump or pit.

Our vertical sump pumps feature a robust centrifugal design and operate without the need for a shaft seal or external sealing water, reducing maintenance requirements while ensuring reliable performance. They are well suited to applications where suction conditions are limited or challenging.

The wetted components are manufactured from highly wear-resistant alloys to provide exceptional durability in abrasive environments. Rubber-lined models are also available for applications involving corrosive or chemically aggressive slurries, offering extended service life and enhanced protection against wear.

For deeper sump installations, extended shaft configurations are available. These models incorporate additional guide bearing support to improve shaft stability, minimise vibration, and maintain dependable operation in deeper pumping applications. Where required, guide bearings can be supplied with a flushing arrangement to maximise bearing life under demanding operating conditions.

Whether for mining, mineral processing, wastewater, or general industrial use, SMI Pumps provides dependable vertical sump pumping solutions backed by expert technical support and application knowledge.

Specifications

Discharge size range: 40mm to 300mm [1.5” to 12”]

Flowrates to: 1000m3/hr [4,400GPM]

Heads to: 55m [180ft]
