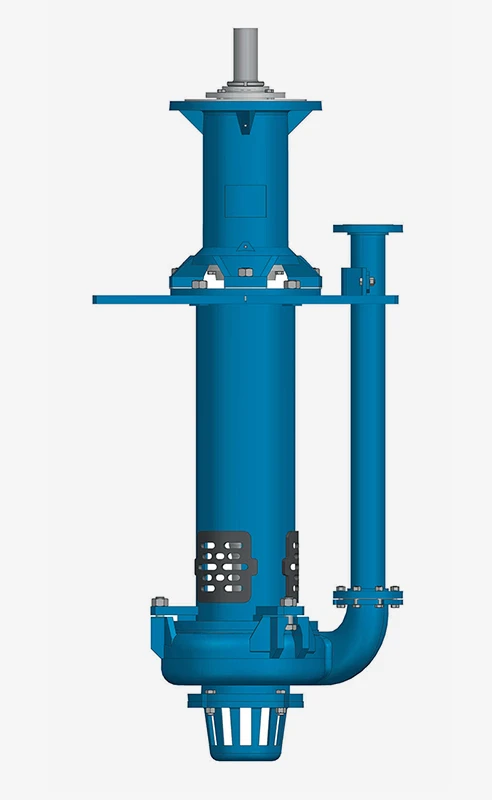

40PV-SP Vertical Slurry Pump
Its compact vertical design minimises installation space while delivering reliable, continuous performance with simplified maintenance and long service life.
Product Advantages
→ High Hydraulic Efficiency
Designed to deliver outstanding flow rates and reliable pumping performance, maximising productivity while reducing operating costs.
→ Low Maintenance Operation
The vertical cantilever design eliminates the need for shaft seals and sealing water, reducing maintenance requirements and minimising downtime.
→ Flexible Installation
Available with multiple shaft lengths and configurations to suit varying sump depths and application requirements.
→ Reliable Engineering
Manufactured using proven hydraulic designs and premium-quality components to ensure dependable operation under demanding conditions.
→ Exceptional Wear & Corrosion Resistance
Constructed using high-chrome alloys and wear-resistant materials to provide superior resistance to abrasion and corrosion in harsh slurry applications.
→ Smooth & Energy Efficient Performance
Engineered for low vibration, reduced noise levels, and efficient power consumption while maintaining consistent pumping performance.
Product Specifications
|
Model |
Frame |
Max. |
Sump |
Performance for Clear Water |
Impeller |
||||||
|
Capacity Q |
Head |
Speed |
Efficiency |
Type |
No. of |
Vane Φ |
Passage |
||||
|
m3/hr |
m |
r/min |
% |
||||||||
|
40PV-SP |
PV |
15 |
900 |
10–44 |
5–28 |
1000-2200 |
20-40 |
Open |
5 |
188 |
12 |
|
10–40 |
9–37 |
1400-2600 |
15-32 |
Cyclo |
8 |
195 |
26 |
||||
|
40PV-SPR |
PV |
15 |
900 |
10–50 |
8–52 |
1200-3000 |
20-40 |
Open |
5 |
188 |
12 |
|
65QV-SP |
QV |
30 |
1200 |
20–120 |
4–56 |
600-2000 |
25-51 |
Open |
5 |
280 |
15 |
|
20–110 |
5–28 |
700-1500 |
20-35 |
Cyclo |
8 |
290 |
40 |
||||
|
65QV-SPR |
QV |
30 |
1200 |
20–100 |
8–46 |
700-850 |
20-47.5 |
Open |
5 |
280 |
23 |
|
100RV-SP |
RV |
75 |
1500 |
50–300 |
6–50 |
500-1400 |
20-56 |
Open |
5 |
370 |
32 |
|
50–250 |
6–31 |
600-1200 |
20-40 |
Cyclo |
8 |
390 |
70 |
||||
|
100RV-SPR |
RV |
75 |
1500 |
50–270 |
9–46 |
600-1400 |
30-60 |
Open |
5 |
370 |
40 |
|
150SV-SP |
SV |
110 |
1800 |
100–500 |
7–37 |
500-1000 |
20-55 |
Open |
5 |
450 |
45 |
|
100–450 |
7–37 |
500-1000 |
20-40 |
Cyclo |
8 |
480 |
80 |
||||
|
150SV-SPR |
SV |
110 |
1800 |
100–450 |
7–35 |
500-1000 |
20-56 |
Open |
5 |
450 |
45 |
|
200SV-SP |
SV |
110 |
1800 |
200–800 |
7–38 |
400-850 |
30-64 |
Open |
5 |
520 |
65 |
|
250TV-SP |
TV |
200 |
1800 |
300–1000 |
8–35 |
400-750 |
20-63 |
Open |
5 |
575 |
65 |
|
300TV |
TV |
200 |
2100 |
360–1400 |
5–28 |
350-700 |
20-62 |
Open |
5 |
610 |
65 |
|
Material Options of Wet end Parts: A05, A33, A49, A61, R55 |
|||||||||||

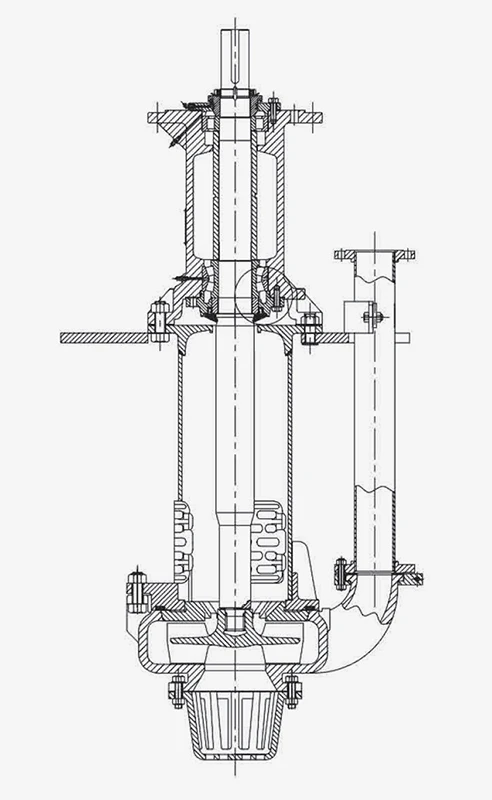

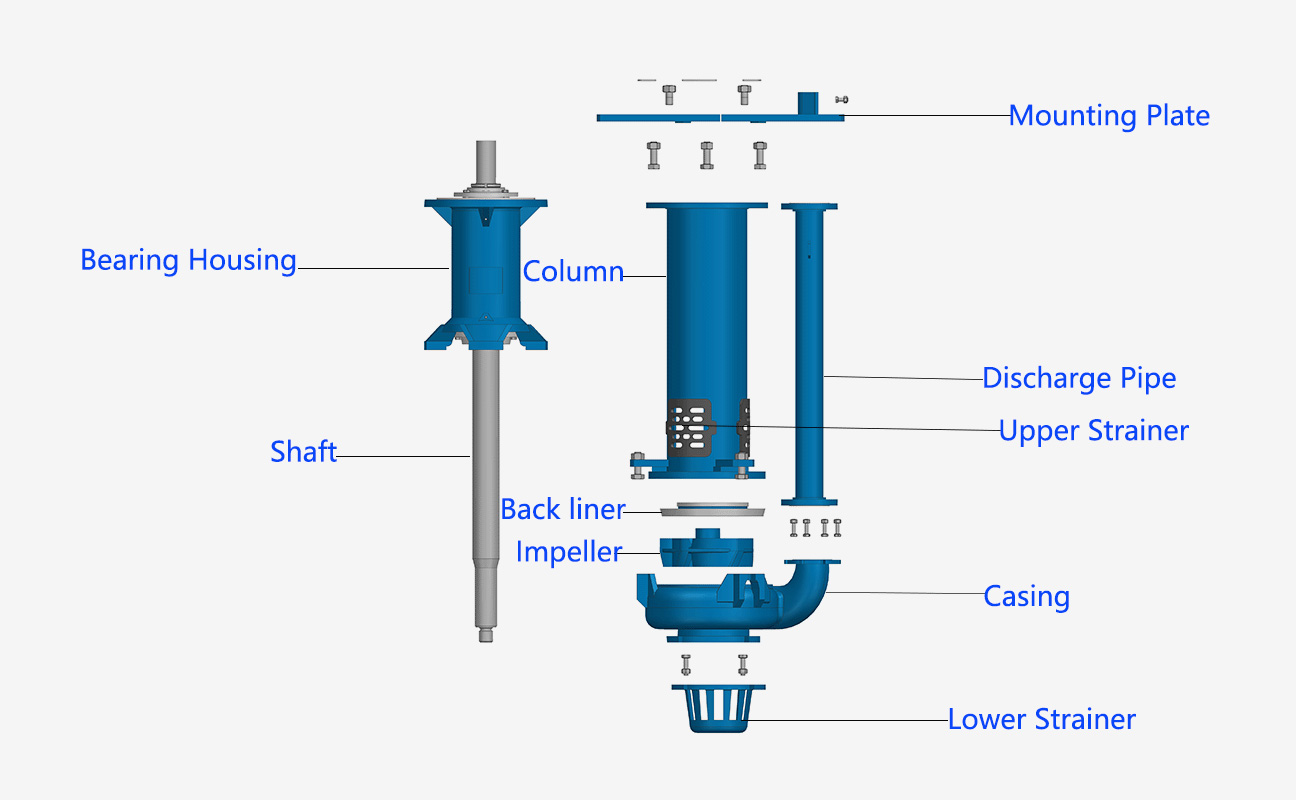

Construction of SP(R) Series Vertical Slurry Pumps

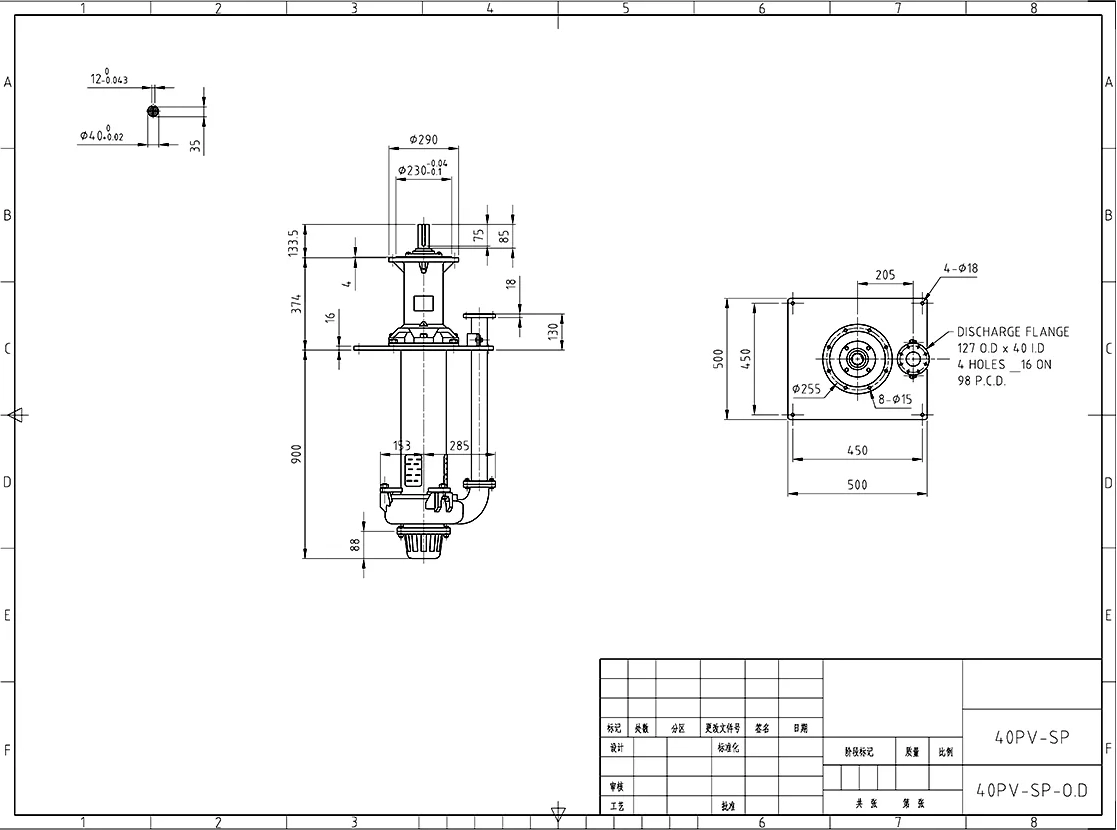

Dimension Drawing
Structure Characteristics
Critical wet-end components, including the casing and impeller, are manufactured from highly wear-resistant and corrosion-resistant materials to maximise service life and minimise maintenance in aggressive operating conditions.
Application
Mining
Efficient transfer of mineral slurries, tailings, and abrasive process fluids for improved plant productivity.
Metallurgical Processing
Reliable handling of high-density slurries in demanding metallurgical and mineral processing applications.
Coal Processing
Designed for coal washing plants and slurry transfer systems, ensuring efficient material handling throughout the process.
Chemical Processing
Suitable for conveying corrosive and abrasive process fluids while delivering dependable performance and operational safety.
