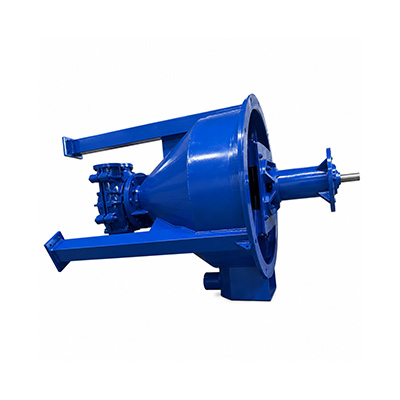

Horizontal Froth Pump

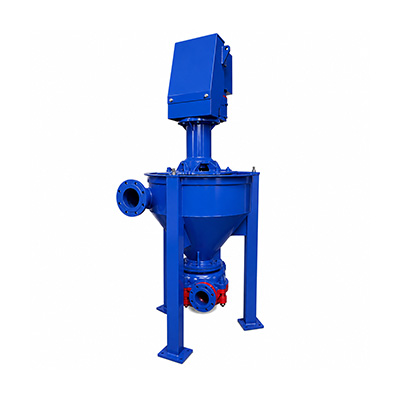

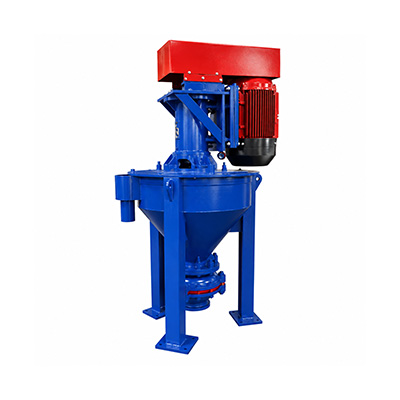

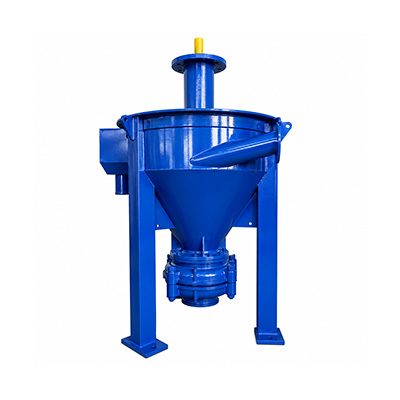

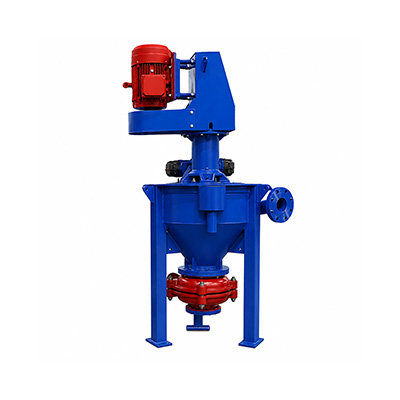

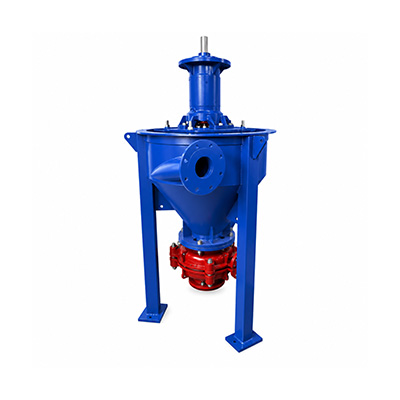

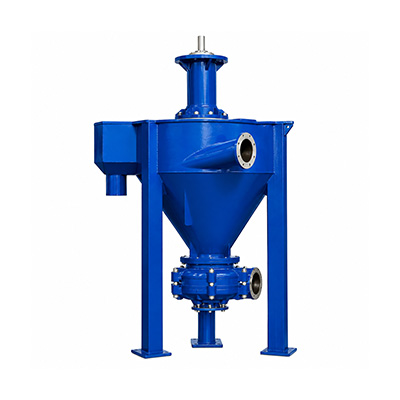

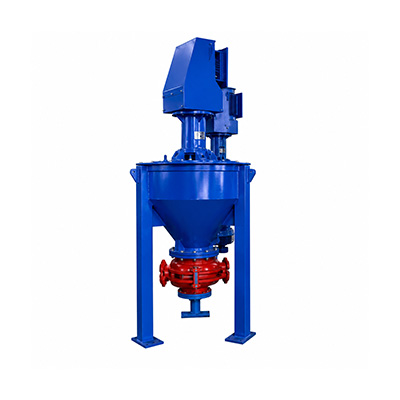

What is a Vertical Froth Pump?

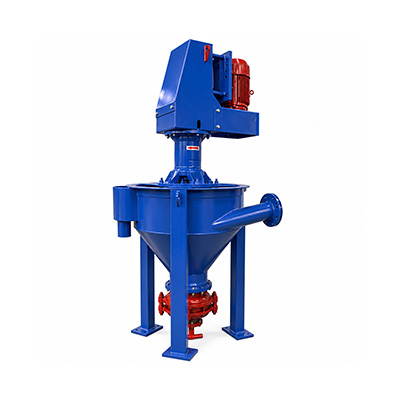

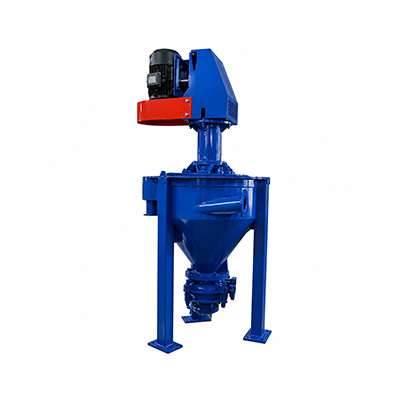

An SMI Pumps Vertical Froth Pump is a specialised slurry pump designed to efficiently handle frothy, aerated and difficult-to-pump slurries commonly encountered in flotation processes. The design assists with separating entrained air from the slurry, promoting stable flow and reducing the risk of air locking during operation.

How Does a Vertical Froth Pump Work?

The SMI Vertical Froth Pump operates by creating an open vortex within the sump through the rotation of the impeller. The tangential inlet and conical tank design encourage effective vortex formation, allowing entrained air to separate from the slurry before pumping. This helps provide smooth, consistent and high-capacity slurry transfer with minimal pulsation.

Vertical Froth Pump Models

SMI Pumps offers a range of Vertical Froth Pump models to accommodate different flow requirements and operating conditions. Available models include:

2QV-AF, 3QV-AF, 4RV-AF, 6SV-AF and 8SV-AF.

Applications

SMI Vertical Froth Pumps are suited to demanding industrial slurry applications, including mining flotation, coal washing, mineral processing and chemical slurry transfer.

Specifications

Discharge Size Range: 50 mm to 200 mm [2” to 8”]
Flow Rates: Up to 570 m³/hr [2,500 GPM]
Heads: Up to 30 m [98 ft]

SMI Pumps supplies robust AF Series Vertical Froth Pumps engineered for reliable handling of frothy and aerated slurries in mining, flotation, mineral processing and other demanding industrial applications.

2QV-AF Froth Pump

3QV-AF Froth Pump

6SV-AF Vertical Froth Pump
