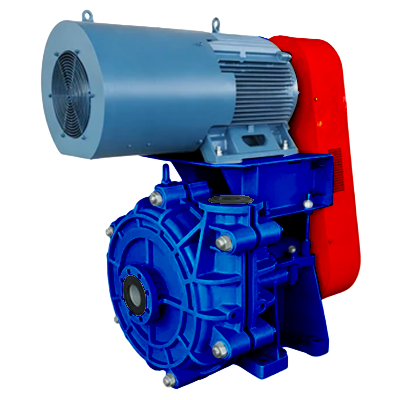

4/3E-HH High Head Slurry Pump

Benefits

• Delivers heads of up to approximately 100 metres for high-lift and long-distance slurry transport.
• High chrome alloy wet-end components provide outstanding abrasion resistance and extended service life.
• CV (belt) drive system minimises shock loading while allowing flexible speed adjustment.
• High-efficiency WEG motor reduces energy consumption without compromising performance.
• Stable operation across a wide range of operating conditions.
• Modular construction simplifies servicing and reduces maintenance downtime.

Key Advantages

→ High Head Hydraulic Performance

Specifically designed for demanding pumping duties, the 4/3E-HH delivers high discharge pressures and heads of up to approximately 100 metres, making it ideal for long-distance pipelines and high-elevation slurry transport.

→ Heavy-Duty Wear Construction

Manufactured using premium high chrome alloy wet-end components, the pump offers exceptional resistance to abrasive wear, helping maximise equipment life in harsh operating environments.

→ CV (Belt) Drive System

The integrated CV drive allows operators to adjust pump speed to suit changing process requirements while reducing startup shock and extending the lifespan of mechanical components.

→ High-Efficiency WEG Motor

Powered by a premium WEG electric motor, the pump delivers dependable performance with lower energy consumption, making it suitable for continuous heavy-duty industrial operation.

→ Wide Operating Range

Designed to perform consistently across varying flow rates and operating heads, the pump easily adapts to changing site conditions while maintaining reliable hydraulic efficiency.

→ Large Solids Handling Capability

With the ability to handle solid particles of up to approximately 38 mm, the 4/3E-HH reduces the likelihood of blockages while maintaining smooth slurry flow.

→ Modular Maintenance-Friendly Design

A modular construction with interchangeable components allows for faster maintenance, simplified servicing, and reduced downtime, helping lower overall maintenance costs.

→ Optimised Closed Impeller Design

The precision-engineered closed impeller maximises hydraulic efficiency, improves wear performance, and promotes smooth, consistent slurry flow throughout the pumping system.

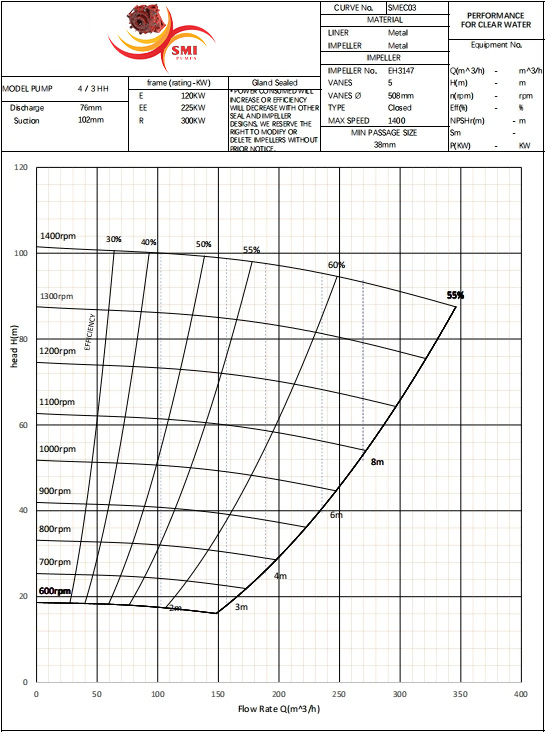

Product Specifications
