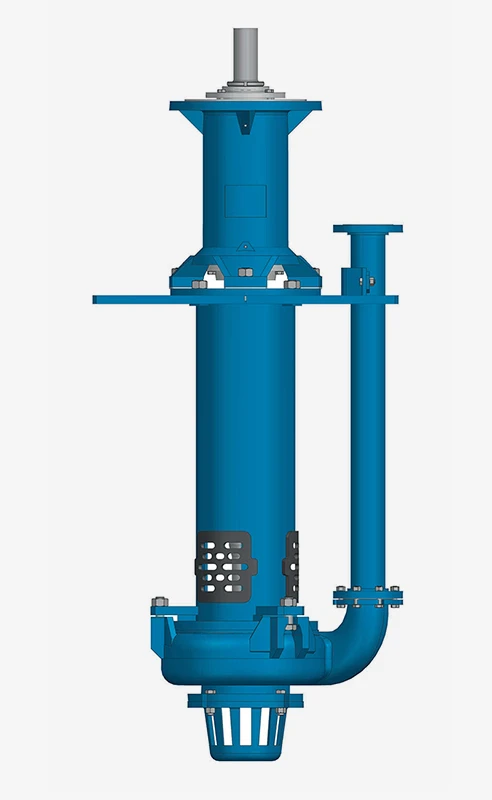

40PV-SP Vertical Slurry Pump (1350 mm Shaft Length)
Designed without a shaft seal, the pump operates submerged in the sump, eliminating the need for sealing water and reducing the risk of leakage. Its robust construction, long service life, and ease of installation make it an ideal solution for mining, mineral processing, metallurgy, chemical processing, and other heavy-duty slurry applications.
Product Advantages
→ High Efficiency Performance
Engineered for efficient slurry handling, the 40PV-SP delivers excellent hydraulic performance and reliable pumping capacity, ensuring maximum productivity in demanding applications.
→ Low Maintenance Design
The vertical cantilever construction eliminates the need for a shaft seal or sealing water system, reducing maintenance requirements, minimising downtime, and lowering operating costs.
→ Flexible Installation Options
Available with various shaft lengths to suit different sump depths and installation requirements, providing a versatile solution for a wide range of operating conditions.
→ Proven Engineering
Designed using advanced hydraulic principles and high-quality components, the pump offers dependable performance and long-term operational reliability.
→ Exceptional Wear Resistance
Manufactured using high-chrome alloys and wear-resistant materials, the pump provides outstanding resistance to abrasion and corrosion, extending service life even in harsh operating environments.
→ Energy Efficient Operation
Designed for smooth, low-vibration performance with reduced noise levels, helping improve workplace safety while lowering overall energy consumption.
Product Specifications
| Model | Frame Type |
Max. Rating (kW) |
Sump Depth mm |
Performance for Clear Water | Impeller | ||||||
| Capacity Q | Head | Speed | Efficiency | Type | No. of Vanes |
Vane Φ mm |
Passage mm |
||||
| m3/hr | m | r/min | % | ||||||||
| 40PV-SP | PV | 15 | 900 | 10–44 | 5–28 | 1000-2200 | 20-40 | Open | 5 | 188 | 12 |
| 10–40 | 9–37 | 1400-2600 | 15-32 | Cyclo | 8 | 195 | 26 | ||||
| 40PV-SPR | PV | 15 | 900 | 10–50 | 8–52 | 1200-3000 | 20-40 | Open | 5 | 188 | 12 |
| 65QV-SP | QV | 30 | 1200 | 20–120 | 4–56 | 600-2000 | 25-51 | Open | 5 | 280 | 15 |
| 20–110 | 5–28 | 700-1500 | 20-35 | Cyclo | 8 | 290 | 40 | ||||
| 65QV-SPR | QV | 30 | 1200 | 20–100 | 8–46 | 700-850 | 20-47.5 | Open | 5 | 280 | 23 |
| 100RV-SP | RV | 75 | 1500 | 50–300 | 6–50 | 500-1400 | 20-56 | Open | 5 | 370 | 32 |
| 50–250 | 6–31 | 600-1200 | 20-40 | Cyclo | 8 | 390 | 70 | ||||
| 100RV-SPR | RV | 75 | 1500 | 50–270 | 9–46 | 600-1400 | 30-60 | Open | 5 | 370 | 40 |
| 150SV-SP | SV | 110 | 1800 | 100–500 | 7–37 | 500-1000 | 20-55 | Open | 5 | 450 | 45 |
| 100–450 | 7–37 | 500-1000 | 20-40 | Cyclo | 8 | 480 | 80 | ||||
| 150SV-SPR | SV | 110 | 1800 | 100–450 | 7–35 | 500-1000 | 20-56 | Open | 5 | 450 | 45 |
| 200SV-SP | SV | 110 | 1800 | 200–800 | 7–38 | 400-850 | 30-64 | Open | 5 | 520 | 65 |
| 250TV-SP | TV | 200 | 1800 | 300–1000 | 8–35 | 400-750 | 20-63 | Open | 5 | 575 | 65 |
| 300TV | TV | 200 | 2100 | 360–1400 | 5–28 | 350-700 | 20-62 | Open | 5 | 610 | 65 |
| Material Options of Wet end Parts: A05, A33, A49, A61, R55 | |||||||||||

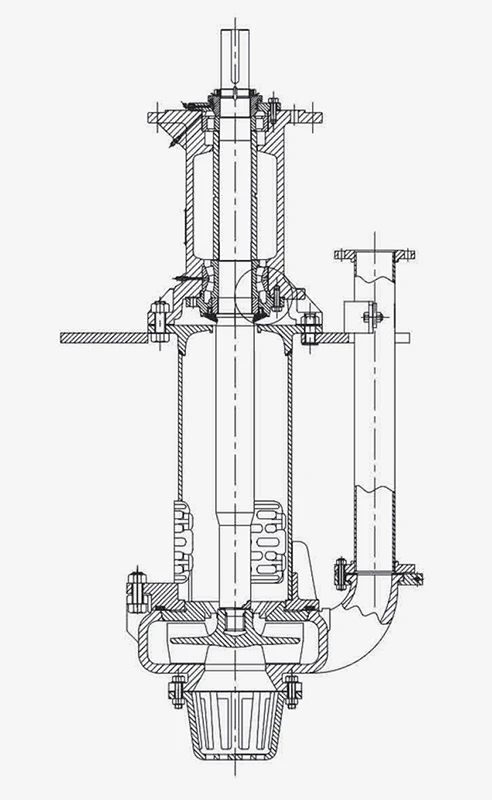

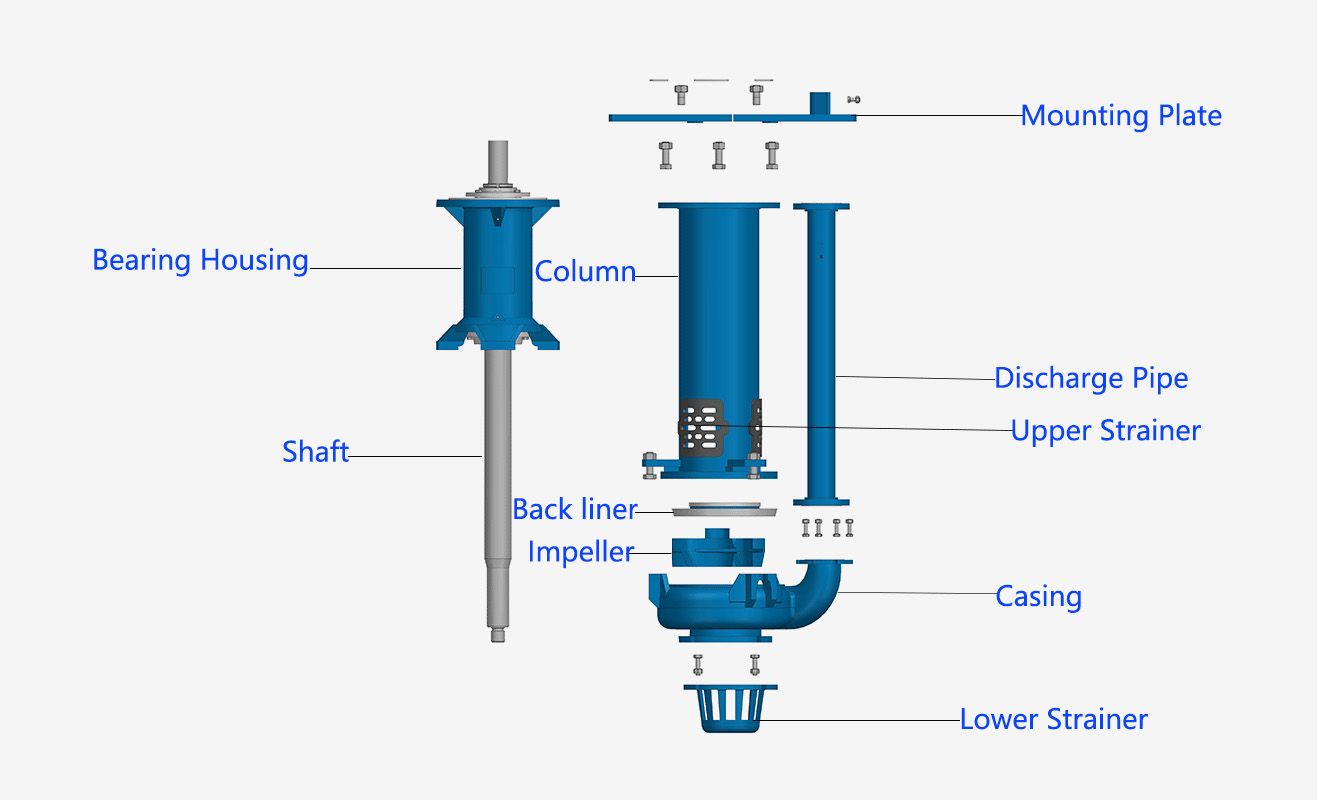

Construction of SP(R) Series Vertical Slurry Pumps

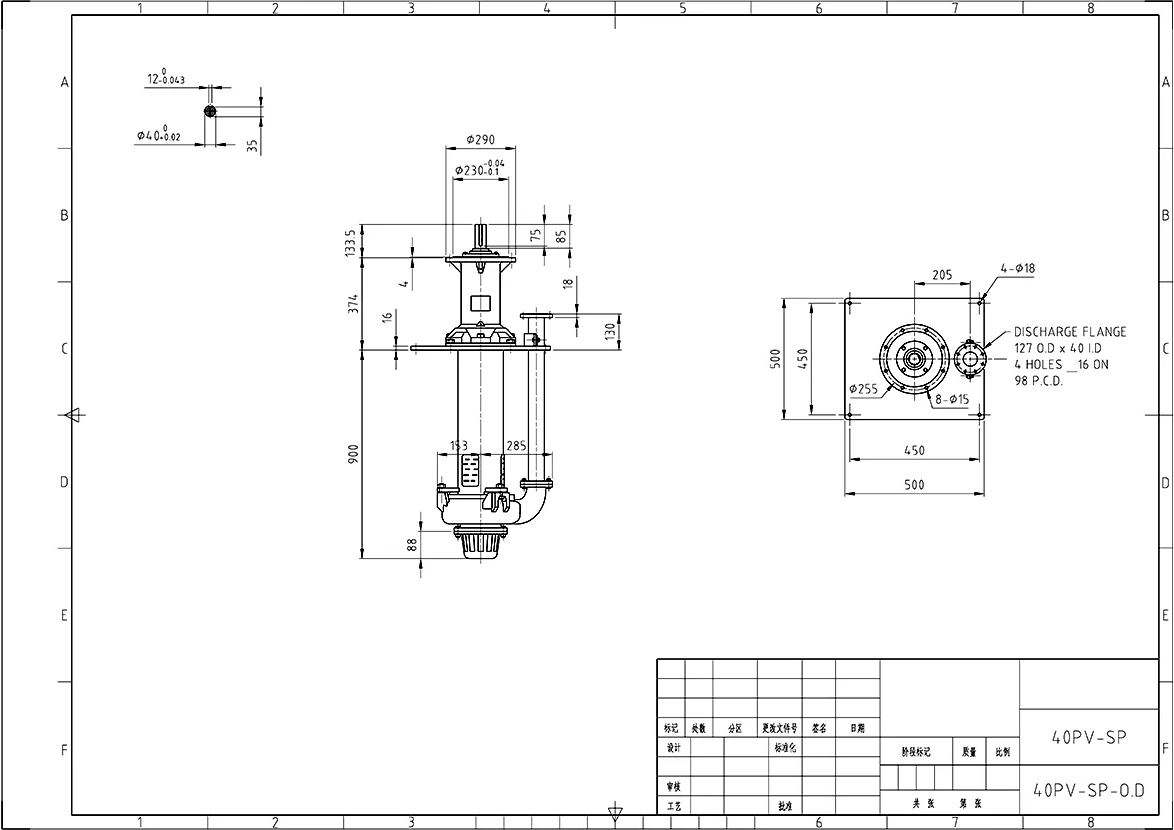

Dimension Drawing
Structure Characteristics
Critical wear components, including the casing and impeller, are manufactured from highly wear-resistant and corrosion-resistant materials, providing dependable long-term performance in aggressive industrial environments.
Application
Mining
Ideal for transferring abrasive mineral slurries, tailings, and process water while improving overall plant efficiency.
Metallurgical Processing
Designed to handle high-density slurries in demanding metallurgical applications, ensuring reliable and continuous production.
Coal Processing
Suitable for conveying coal slurry and wash plant applications, delivering efficient material transfer throughout the coal beneficiation process.
Chemical Processing
Capable of handling corrosive and abrasive process fluids, providing reliable performance in challenging chemical processing environments.
